industrial heaters
Pioneers in the industry, we offer heat trace cable, drum heaters, silicone rubber heaters, silicone rubber heater, pts instant electric heating cable and pts high density cartridge heater from India.
Approx. Price: Rs 280 / Meter
Product Details:
| Cable Type | Self Regulating |
| Power Output | ACCORDING REQUIREMENT |
| Max Maintain Temp | ACCORDING REQUIREMENT |
| Conductor Type | Copper |
| Color | Black |
| Brand | Chromalox |
| Outer Sheath Material | Fluoropolymer |
| Voltage Rating | 230 V |
| Thermocouple Type | J-Type |
| Material | PVC |
| Country of Origin | Made in India |

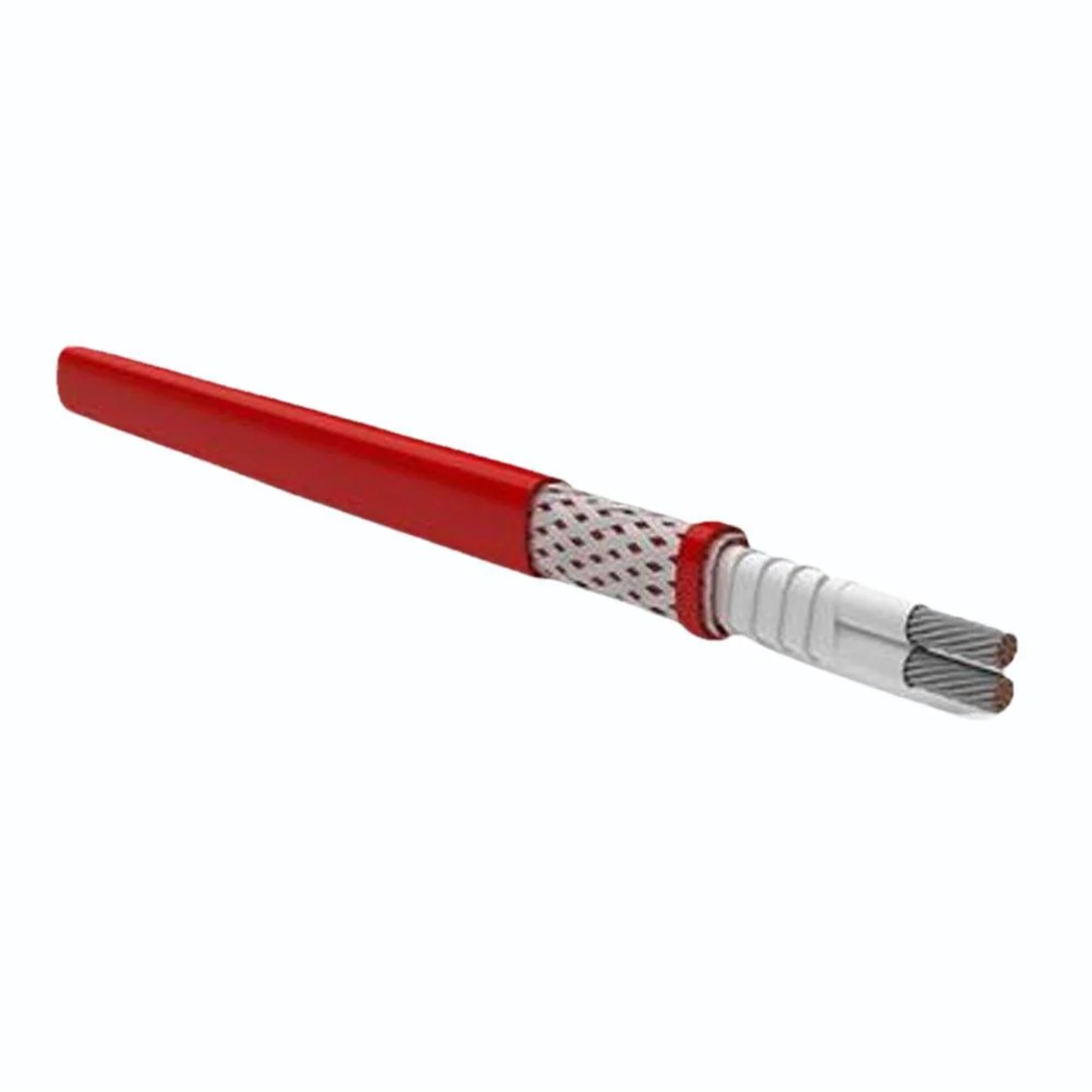

SELF REGULATING HEATING CABLE

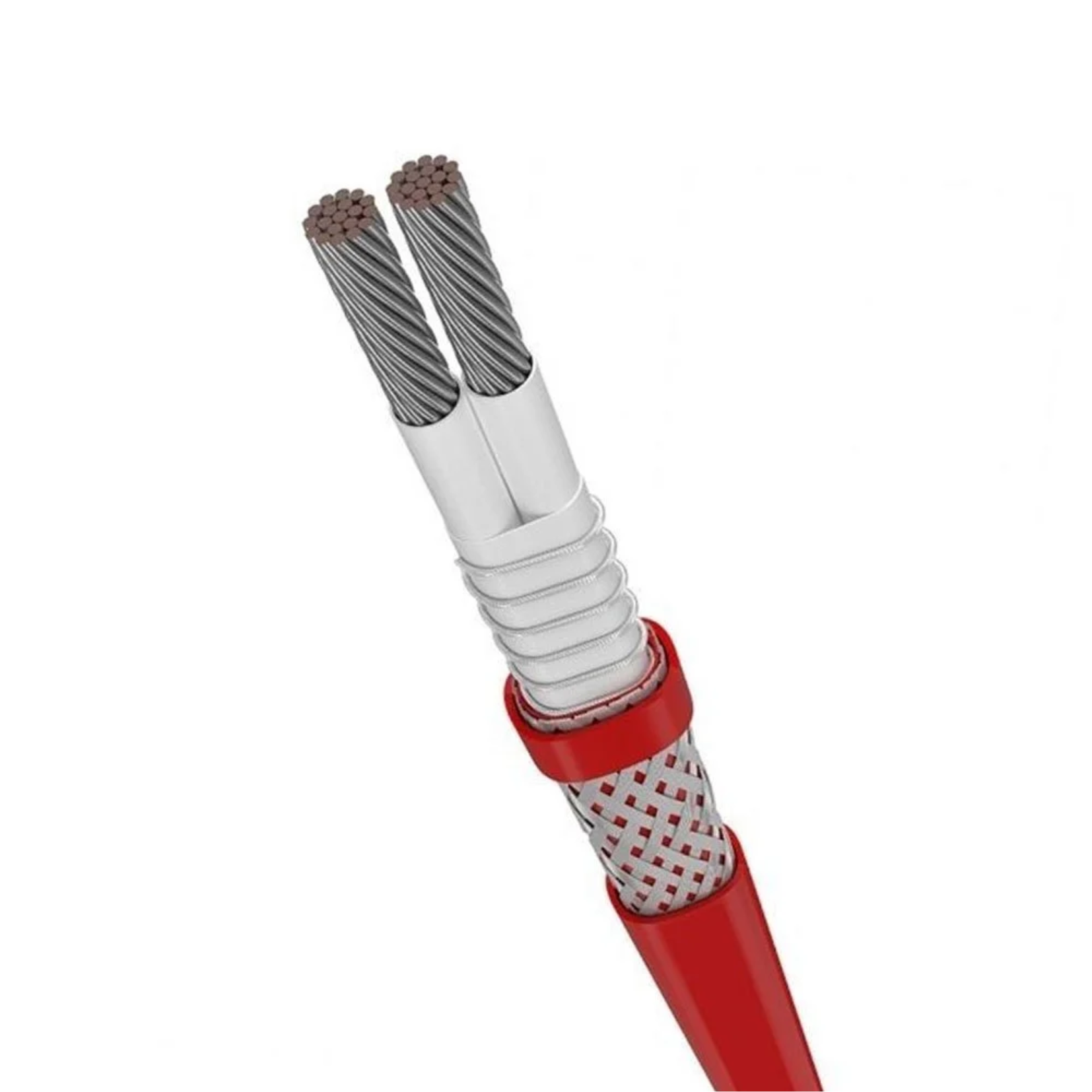

Power Tech Solution is a prominent manufacturer of self-regulating heating cables that provides efficient heat management for industrial and commercial use. These self-regulating cables are made up of a semi-conductive heater matrix that is extruded between parallel bus wires. Its output is autonomously adjusted to respond to changes in ambient temperature along its whole length.
How It Works
As temperatures grow, the heater’s resistance increase which lower the output wattage. On the other hand, when the temperature drops, the resistance drops and the cable heats up more. Thus, in some cases, a thermostat is not necessary. Even when wrapped by itself, it will never burn out or overheat (overlapped). Cut it to any desired length. Thus, it’s a practical, user-friendly, and energy-efficient product.
Key Features
Energy Efficiency: These self-regulating cables is known to use only the power needed, which makes them super energy-efficient and cost-effective.
Safety and Durability: They come with moisture-resistant and UV-protected outer jackets for extra durability.
Easy Installation: You can cut these cables to the length you need, without any special design requirements, making installation quick and simple for all kinds of pipes and setups.
Application Areas
- Freeze Protection
- Temperature maintenance
- Heating of roads, ramps, walkways and others
- Roof & gutter heating and Under floor heating
Specifications:-
| Content | Details |
| Output wattage at 10℃ | |
| Braiding covering area | Over 85% |
| Max. maintain temp @ 10℃ | 65 ℃ |
| Max. exposure temp. | 85℃ |
| Min. installation temp. | -40 ℃ |
| Heat stability | Maintain Over 90% heat after 300 cycles from 10 ℃ to 65 ℃ |
| Bending radius | 5 times*cable thickness |
| Resistance between bus wire and braiding | Over 100 MΩ/M with a VDC 2500 megohmmete |
| Voltage | 230 V |
| Regular colour | Blue, Black or Grey |
| Regular size (please contact us for other size) | 13.5*5.5mm (Width*Thickness) |
Self-regulating heating cable is a widely used solution for various applications looking for high-performance, eco-friendly heating systems. At Power Tech Solution, we manufacture and supply these cables in all standard sizes, wattages and specification for numerous applications. Furthermore, we are dedicated to offer customizations for these advanced heating solutions as per your your needs.
Approx. Price: Rs 300 / Meter
Product Details:
| Minimum Order Quantity | 100 Meter |
| Cable Type | Self Regulating |
| Power Output | 25 W/m |
| Max Maintain Temp | 65 °C |
| Application | Pipe Heating |
| Outer Sheath Material | Fluoropolymer |
| Voltage Rating | 220 V |
| Conductor Type | Copper |
| Color | Red |
| Temperature | 0-65 |
| Usage/Application | PIPE ANTIFREIZING |
| BRAND | PTS ( POWER TECH SOLUTION) HEATING CABLE MODEL NO PTSH035 |

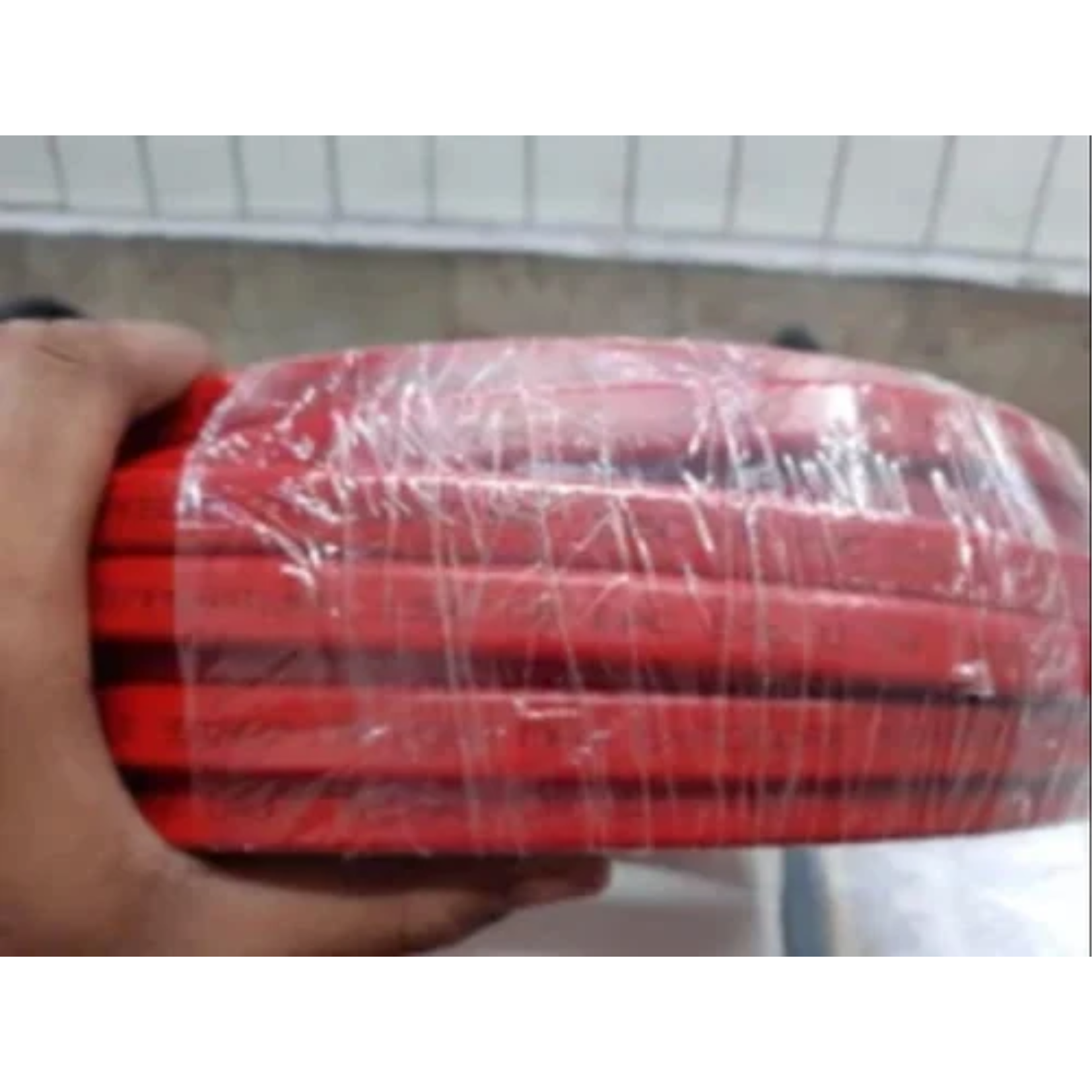

- PTS is a low temperature self regulating heating cable for pipes ,tanks and vessels, which can be used for freeze protection or temperature maintenance in industrail field.
- PTS also can be used for deicing heat tracing cable, self regulating gutter heat cable and self regulating roof heat cable in residential field.
- It is normally suited to small diameter metal / non-metal pipes and roof & gutter tracing heat.
- It can be cut-to-length at site.
- PTS is approved for using in non-hazardous and hazardous areas.
- We POWER TECH SOLUTION manufacturer of Insulated Heating cable, Heat tracing cable manufacturer, Heat trace cable manufacturer,Self regulating Heat tracing cable manufacturer, Industrial heater manufacturer, underfloor heater cable manufacturer.
Approx. Price: Rs 250 / Meter
Product Details:

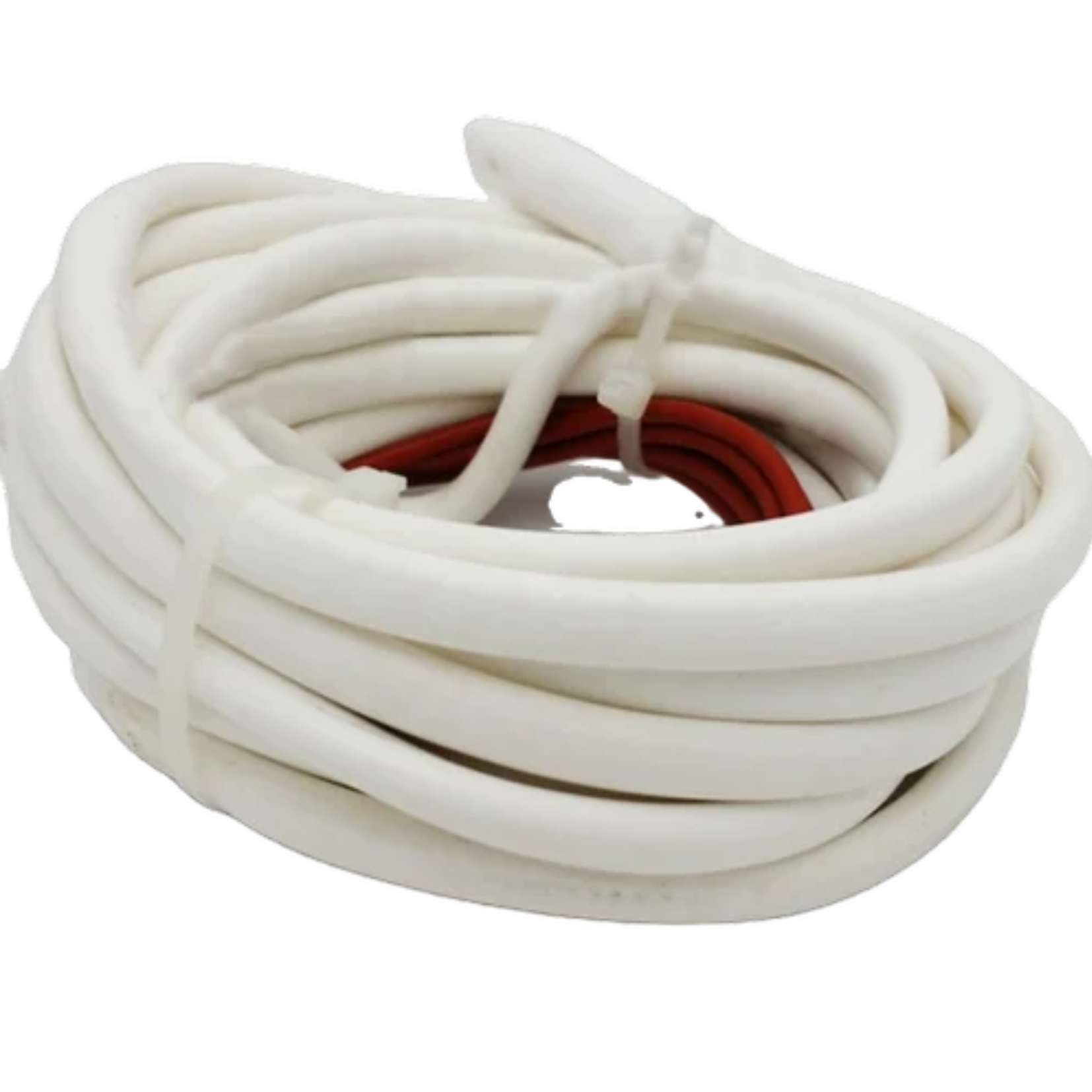

| Heater Shape | SILICONE DRAIN HEATING CABLEE |
| Types | Ring Heaters |
| Power | 50W |
| Heater Wattage | 50 W |
| Heater Voltage | 230 V |
| Voltage | 12- 415 |
| Condition | New |
| Brand | Power Tech |
| Heater Material | Silicon Rubber |
| Country of Origin | Made in India |

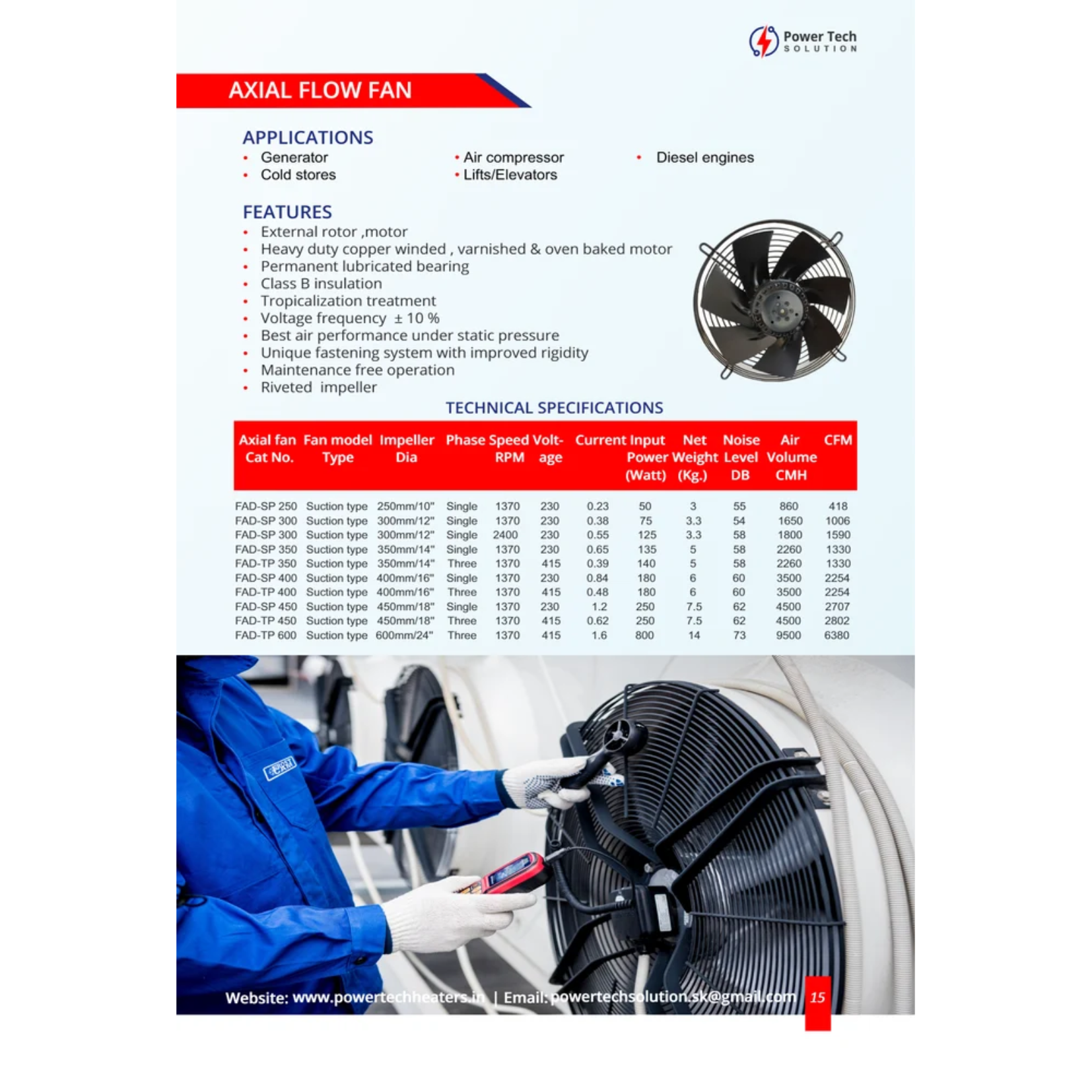

Power Tech Solution” are Manufacturer, Exporter And Importer of an extensive array Ac Fan, Immersion Heater, Axial Flow Fan, Heating Cables, Shaded Pole Motor, Thermal Overload etc.
