Electric Heat Tracker
Offering you a complete choice of products which include heat tracing systems and self regulating heat tracer (power tech solution).
Approx. Price: Rs 150 / Piece
Product Details:
| Heater Type | DRAIN HEAT CABLE |
| Heating Cable Type | DRAIN HEAT CABLE |
| Voltage | 220V |
| Power | 45watt per mtr |
| Brand | PTS BRAND |
| Insulation Material | SS DRAIDED |
| Size | UNIVERSAL |
| Heater Material | Nicrome |
| Conductor Material | Stainless Steel |
| Heating Output | 30 W/m |
| Length | 25 m |
| Maximum Operating Temperature | 105 degree c |
| Country of Origin | Made in India |
Key Features:
Intelligent Self-Regulating Technology: Automatically increases thermal output when ambient temperature drops and decreases output as the temperature rises, preventing burnout and reducing power consumption.
Cut-to-Length Field Flexibility: Can be cut, spliced, and terminated directly at the job site without changing the rated wattage per meter.
Rugged Mechanical & Chemical Protection: Multi-layer construction with Fluoropolymer/PTFE jackets and heavy-duty SS braiding resists corrosion, chemical exposure, UV rays, and mechanical abrasion.
Safe Overlapping Design: Advanced semi-conductive core allows safe overlapping without creating hot spots or risk of cable failure.
Low Maintenance & Long Service Life: Delivers continuous, reliable performance across hazardous and non-hazardous industrial zones.
Primary Applications:

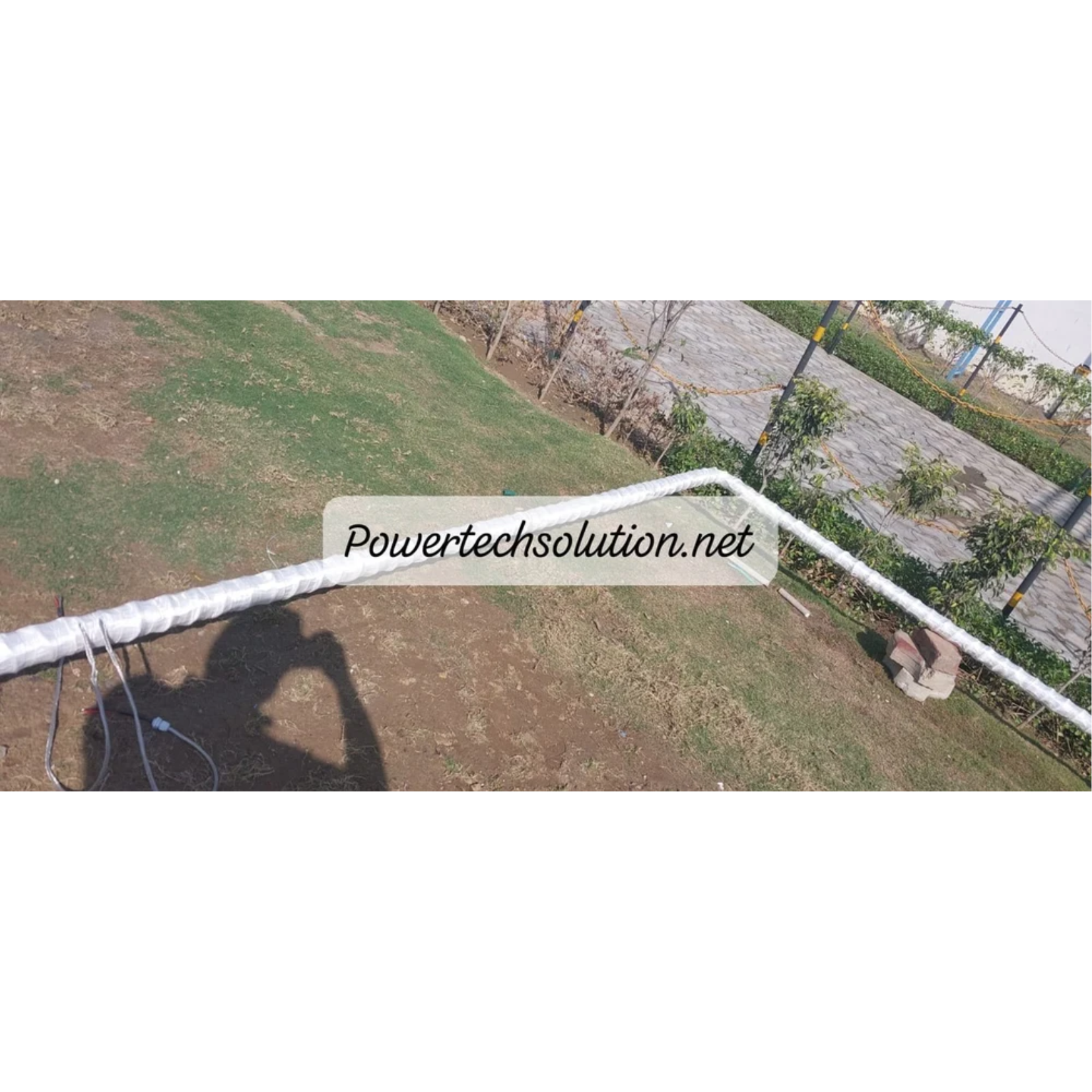

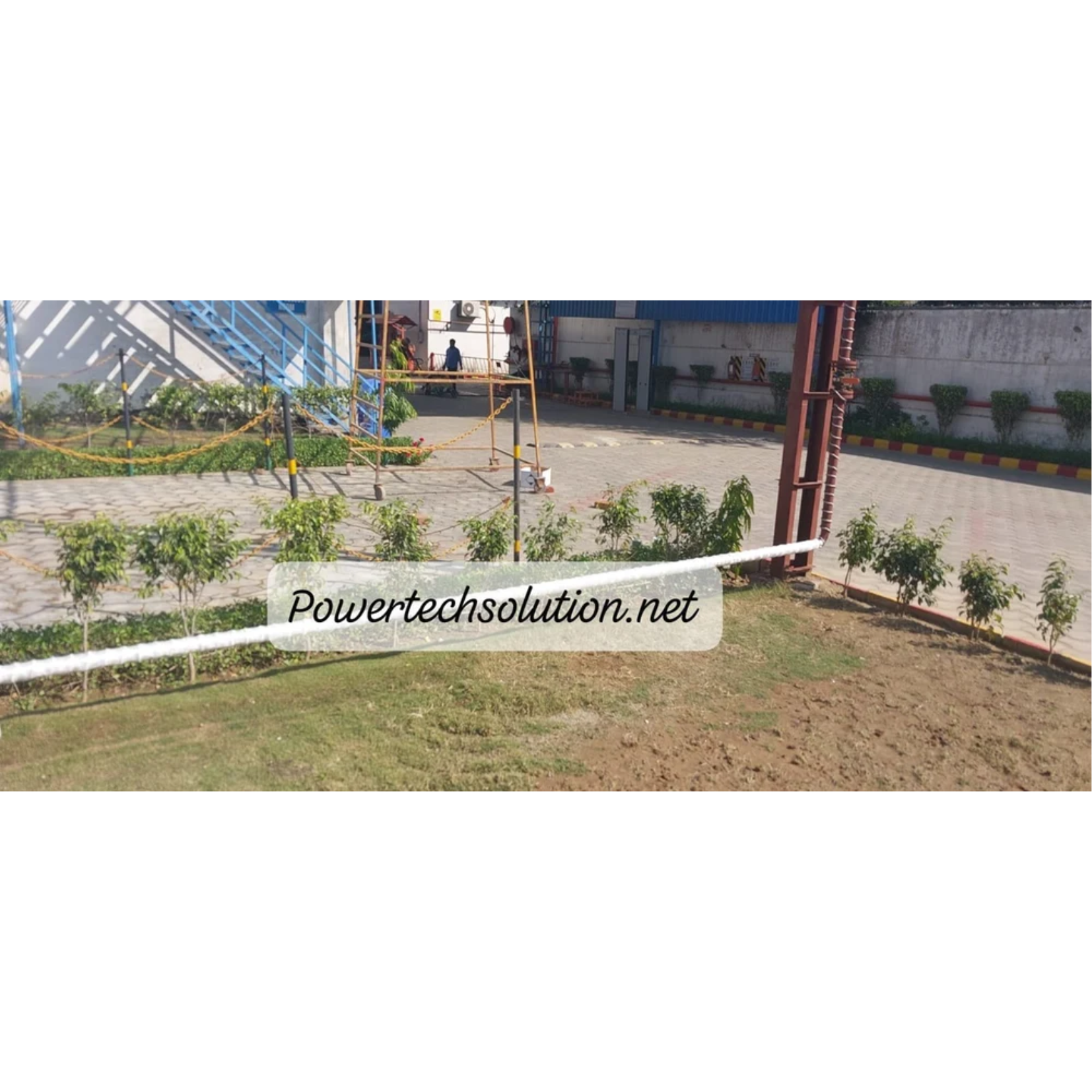

Pipeline freeze protection (Water, oil, and chemical transfer lines)

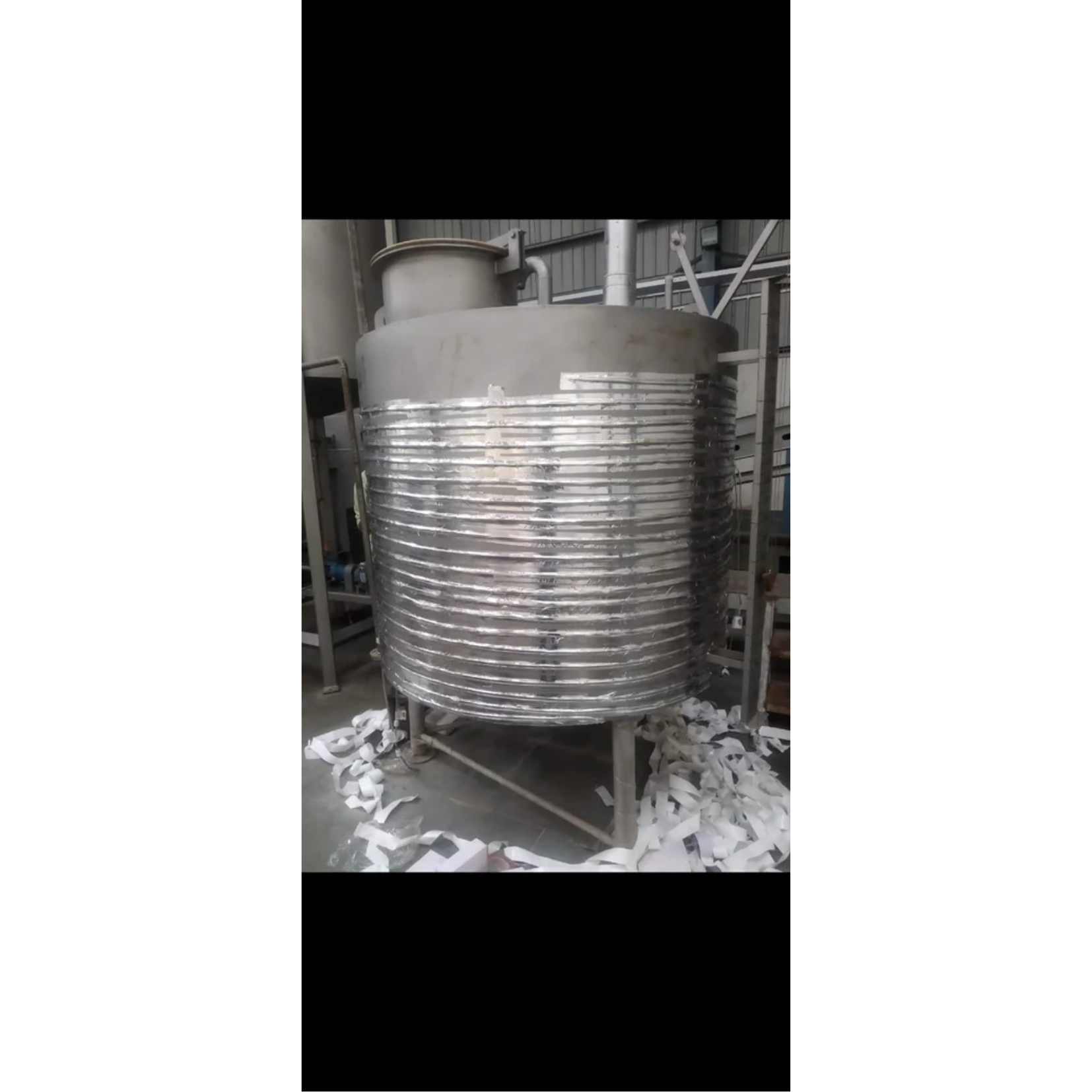

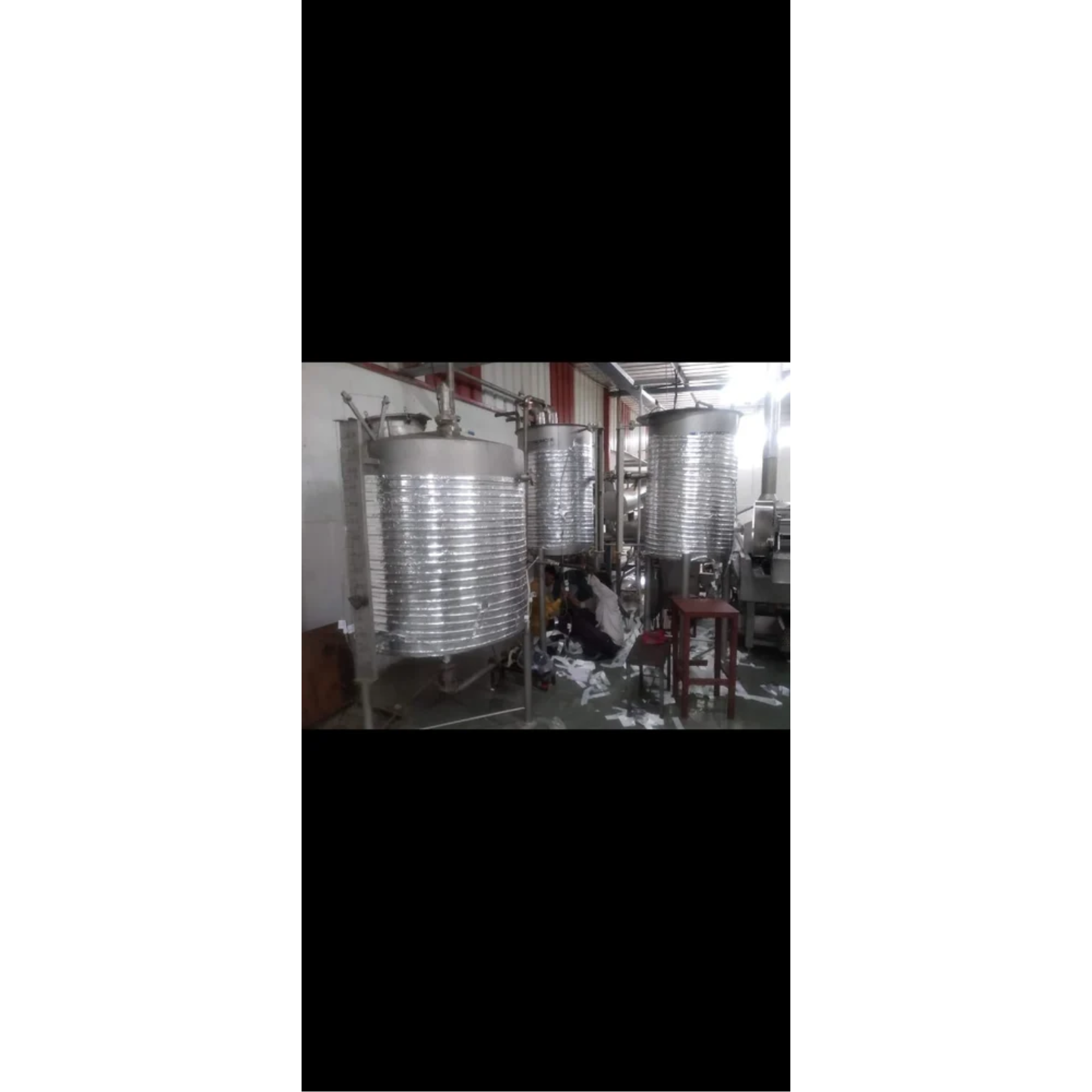

Process temperature maintenance for industrial tanks, vessels, and valves
Cold storage door frame, gasket, and defrost drain line heating
Roof, gutter, and ramp snow melting / de-icing
HVAC duct and commercial fluid line heat tracing
Technical Specifications:
Brand: Power Tech Solution (PTS)
Cable Type: Self-Regulating / Constant Wattage Heat Trace Cable
Power Output Options: 10 W/m, 20 W/m, 25 W/m, 35 W/m, 45 W/m
Supply Voltage: 220V – 240V AC (50/60 Hz)
Maximum Maintenance Temperature: Up to 65°C – 105°C (High-temp variants up to 150°C)
Outer Sheath / Braiding: Polyolefin / Fluoropolymer with Stainless Steel (SS) Braid
Conductor Material: High-grade Nickel-plated Copper / Nichrome
Supply Options: Cut-to-length as per order / 100m–500m standard reels
Approx. Price: Rs 250 / Meter
Product Details:
| Usage/Application | Heaters |
| Material | Stainless Steel |
| Voltage | 230 V |
| Min. Installation Temp. | -40 Degree Celsius |
| Max. Exposure Temp. | 85 Degree Celsius |
| Braiding Covering Area | Over 85% |
| Heat Stability | Maintain Over 90% heat after 300 cycles from 10 to 65 Degree Celsius |
| Bending Radius | 5 times*cable thickness |
| Resistance between bus wire and braiding | Over 100 M/M with a VDC 2500 megohmmete |
| Regular Color | Blue, Black or Grey |
| Regular Size | 13.5 x 5.5 mm (Width x Thickness) |
Self regulating heating cable provide the most versatility in heat trace design and applications. Constructed of a Semi-conductive heater matrix extruded between parallel bus wires, a self regulating cable adjusts its output to independently respond to ambient temperatures all along its length.
As temperatures increase, the heater’s resistance increase which lower the output wattage. Conversely, as the temperature decrease, the resistance decreases and the cable produces more heat. So itis no need thermostat in some applications. It will never overheat or burnout even when wrapped by itself(overlapped). It can be cut to any length. So it is a convenient ,easy use and energy saving product.
